Output Connections Three Phase

The output connections follow the same order as the input. There is no connection for Neutral . Connect the pump power wiring in the same order as the input.

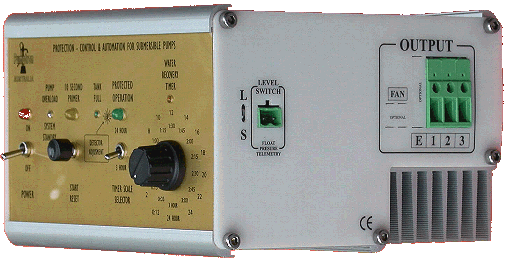

You can see some plugs other than the power output, they are:

Fan:  Pumps that take more than 7 Amps of current should have a fan connected to this plug.

Float switch:  If the pump is used to fill up a tank or dam, a float switch can be connected to this plug.
